CF-120 High Insulation Matte Reflective Gap Reflective Film

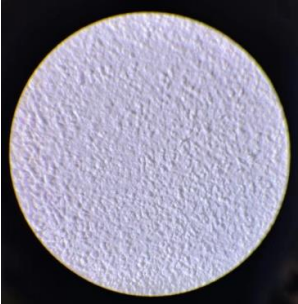

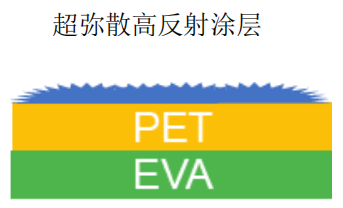

In photovoltaic modules, there is a gap between the crystalline silicon cells, and the light passing through the gap cannot be used directly to generate electricity. By applying a light-guiding film to the backsheet in the gap area, light can be redirected and captured by the cells. This additional light can increase the power output of the module. TPK's newly developed product enhances the all-day power gain through an ultra-dispersive, highly reflective inorganic coating that is compatible with PET. Performance Characteristics: Enhancement of oblique light reflectivity and increase of total power gain throughout the day - Highly insulating material to build rough surface; - Ultra-matte, diffuse reflection; - Ultra-high reflectivity at all angles Ultra High Weather Resistance - Non-metallic material, super weather resistant; - Cross-linked EVA Ultra-thin products - Reduces film thickness by 21% and improves lamination yields; Insulation material - No leakage hazard Intellectual Property - No hidden dangers
PRODUCT SPECIFICATIONS
appearances
Foreign matter or dirt Φ0.1 or less mm
thicknesses
Less than 90μm; total thickness tolerance of ±6μm according to design requirements.
breadth
According to the design requirements of the amount of width tolerance control ± 0.1mm
tensile strength
>50MPa
Elongation at break
>100%
shrinkage
<1.5%
reflectivity
>85%
Gloss (60° test)
<15GU
UV aging 60KWH
黄变指数≤3KWH
DH1000
No delamination Hour
TC200
non-delaminating
breakdown voltage
>20KV
Degree of cross-linking (xylene extraction)
60±10%
Surface resistance (reflective surface)
>1*10¹¹Ω
